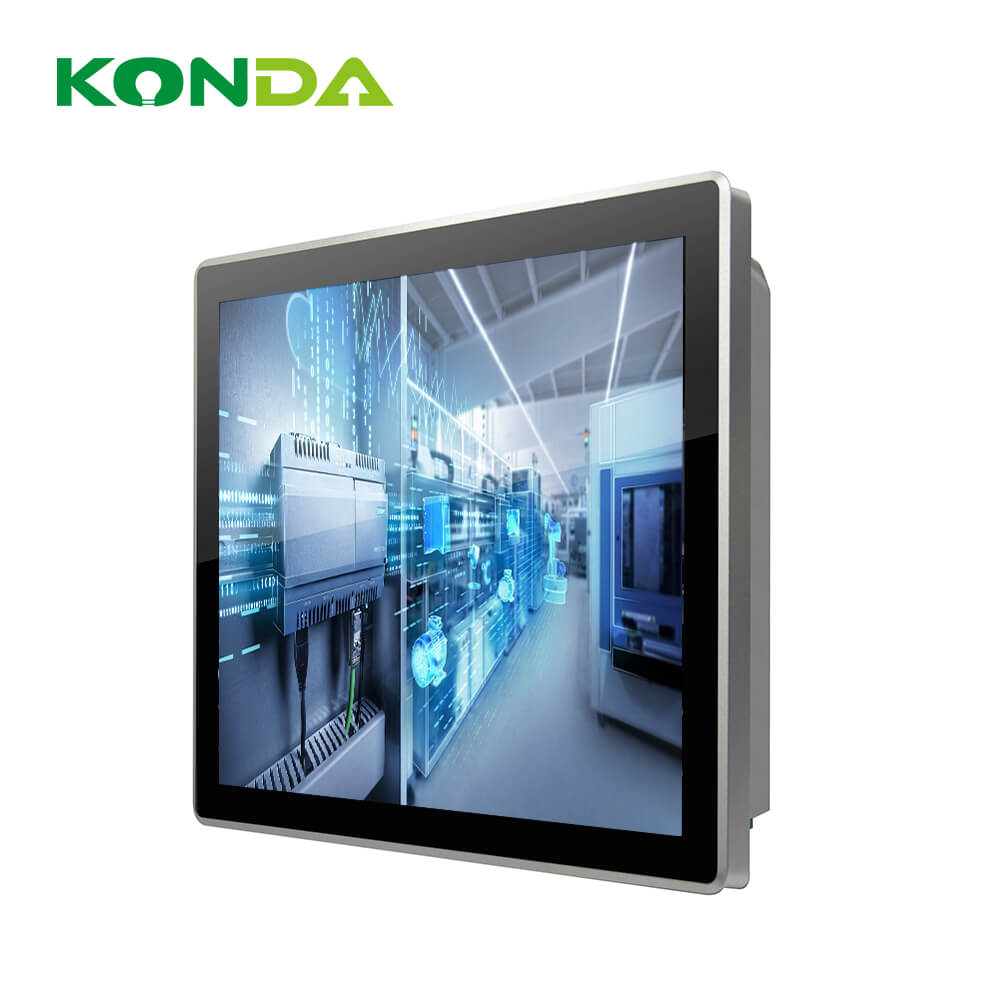

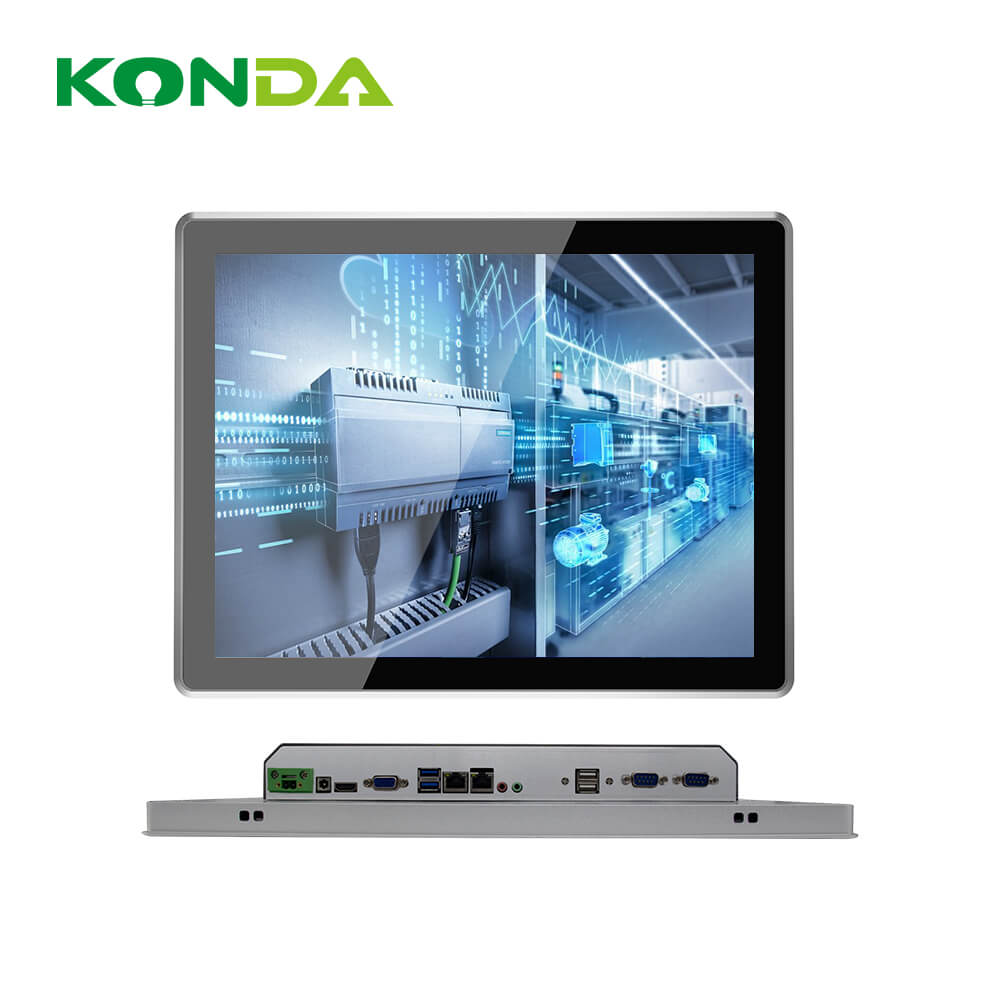

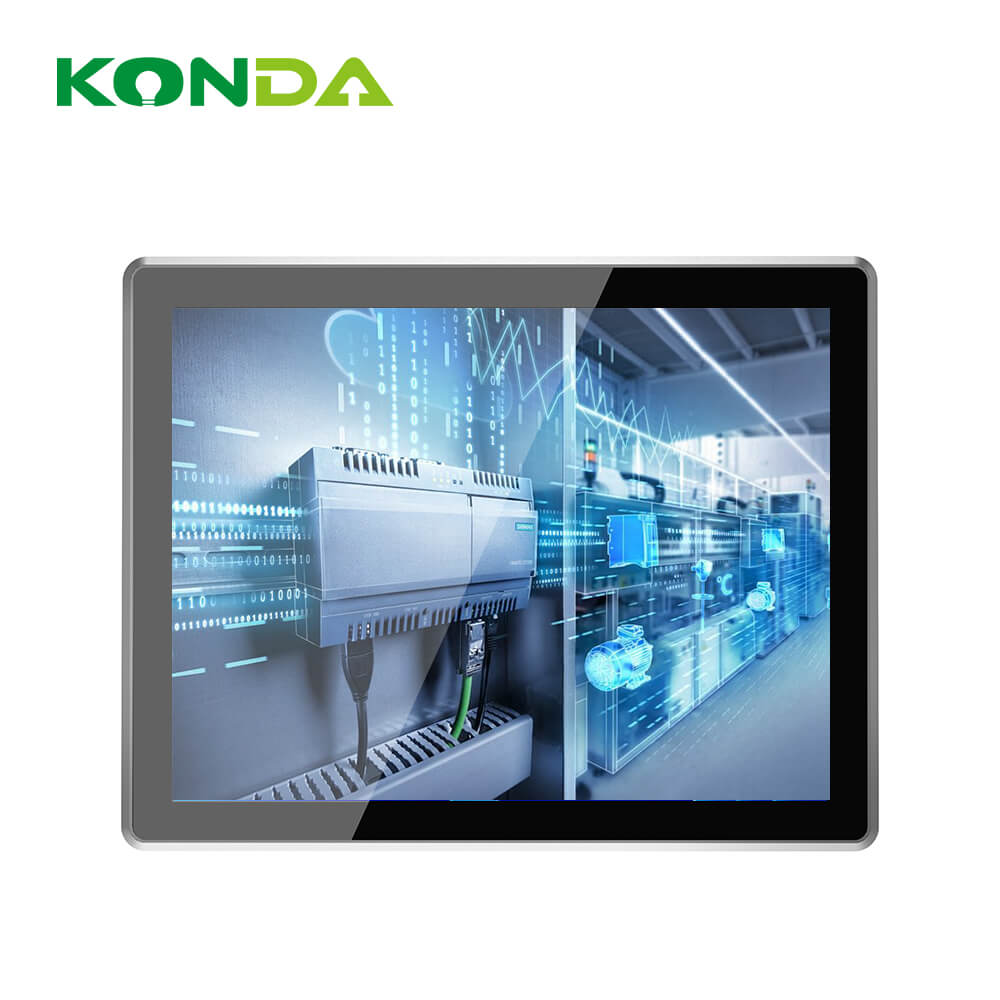

AIC-H Series

Desktop CPU Supported and Fan-Cooled Design

Size Range: 15 – 21.5 inches are Selectable

Features:

Supports Intel desktop processors (6^th-Latest) with a power consumption of up to 65W.
Rugged aluminum alloydesign, support embedded, mount and VESA installation.
Operation temperature range from -10℃ to 60℃, stable for 24/7 industrial operation.

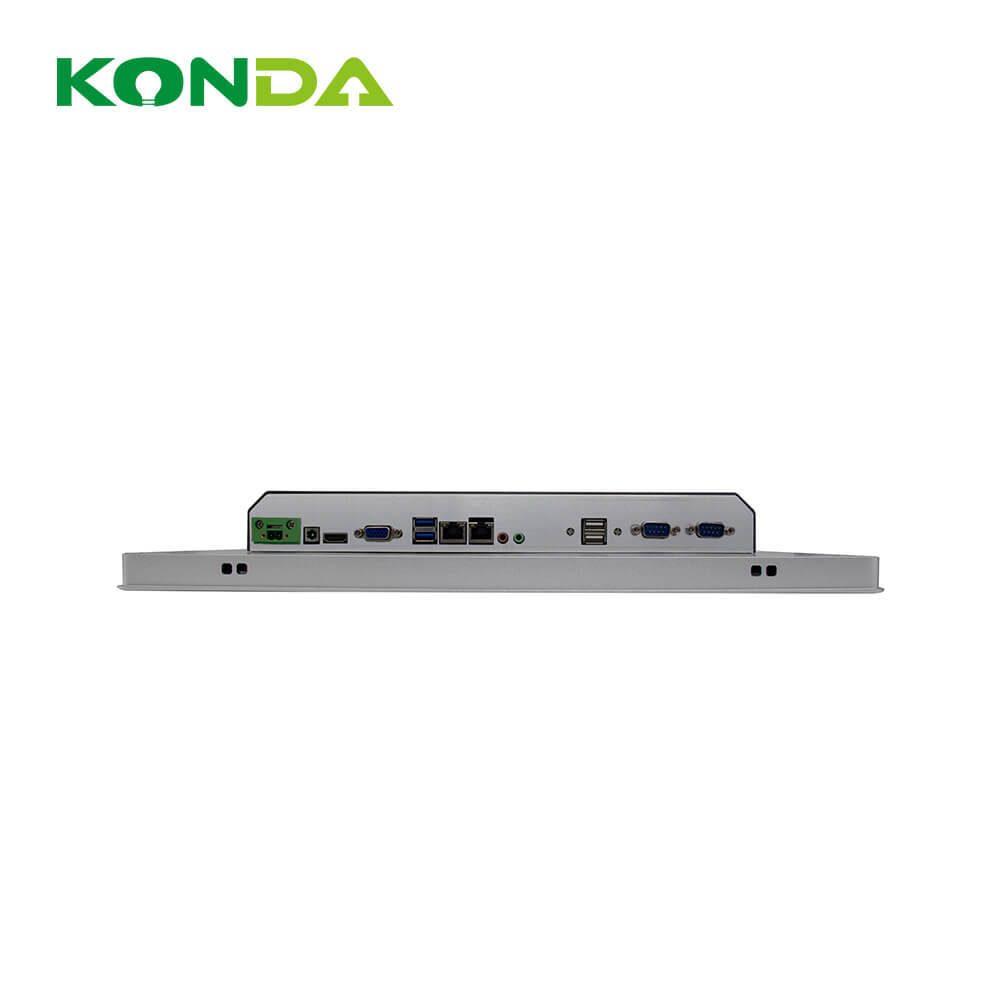

Supports up to 6 COM ports; 4*USB; 2*LAN; 1*HDMI and 1*VGA.
Front panel with IP65 protection for dustproof and waterproof performance.
DC 19V power input.

Appearance	Material	Aluminum alloy and iron witi the Fans
	Color	Silver and Black

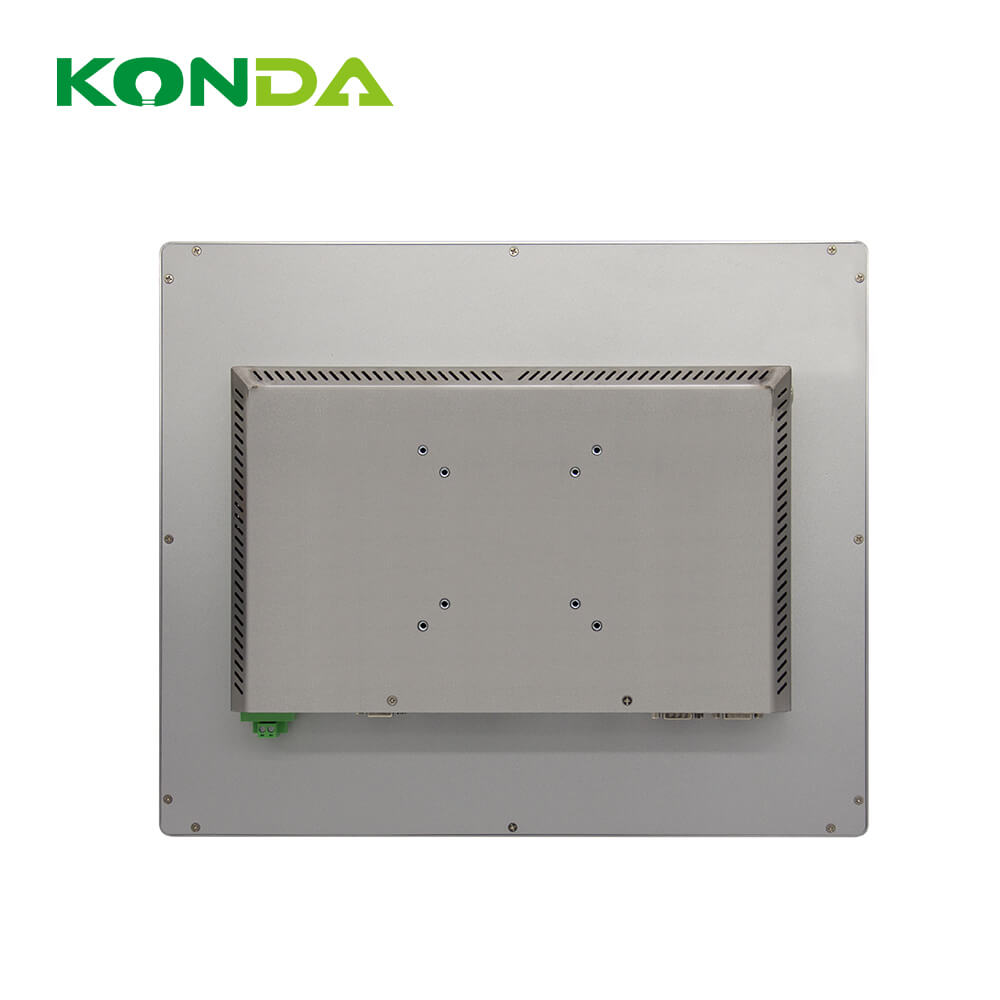

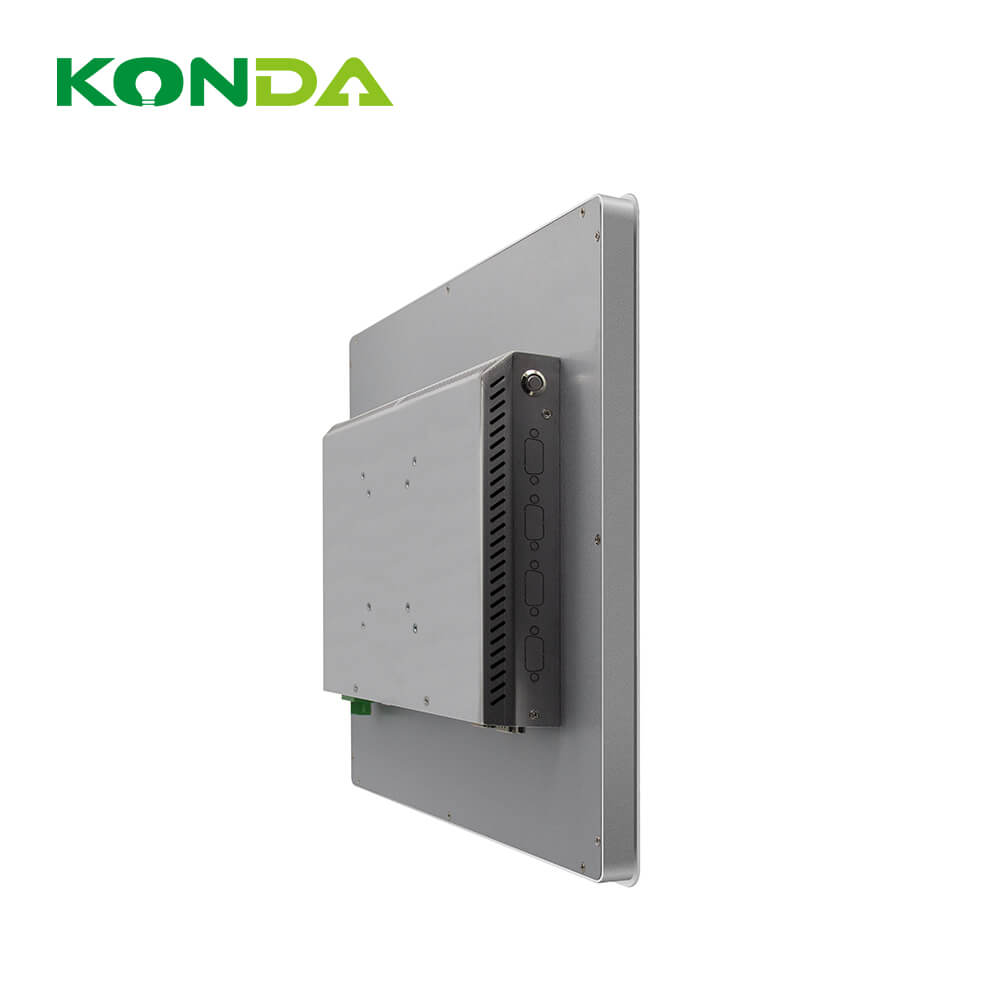

	Mounting	Embedded installation/ Panel Mount and VESA-Mount（100 * 100mm）
Display	LCD	15”	17”	19”	15.6”	21.5”
	Ratio
		1024*768	1280*1024		1920*1080
	Brightness	250cd/m2 (800:1)
	Touch	10-point capacitive touch screen
Motherboard	CPU	Supports Intel desktop processors（6-13th） with a power consumption of up to 65W
	GPU	Intel® HD Graphics
	Memory	4G/8G/16G/32G
	SSD	SSD M.2 128G/256G/512G/1TB
External I/O	Power	1*Power Button
	Display	1VGA，1HDMI
	LAN	2*8111Hs GbE (10/100/1000 Mbps)
	USB	2* USB2.0，2*USB3.0
	COM	2/6* RS232 DB9
	Audio	1* Line out，1* MIC
	Power	1* DC 19V
Expansion slot	Mini PCIE	1* Mini-PCIE
Sotfware	OS	Liunx/Win10/Win11
	Watch Dog	System Reset, Programmable 255 levels timer interval, From 1~255 sec/min
Power	Power Input	DC 19V
	Consumption	35-120W
Environmental	Operation Temp	-10℃～60℃
	Storage Temp	-20℃～70℃
	Relative Humidity	5%-95% Relative humidity, no condensation
	Shock	0.5g rms/5-500HZ/random/operating

WIFI

Bluetooth

GPS

Camera

NFC

4G

Barcode

QR code
