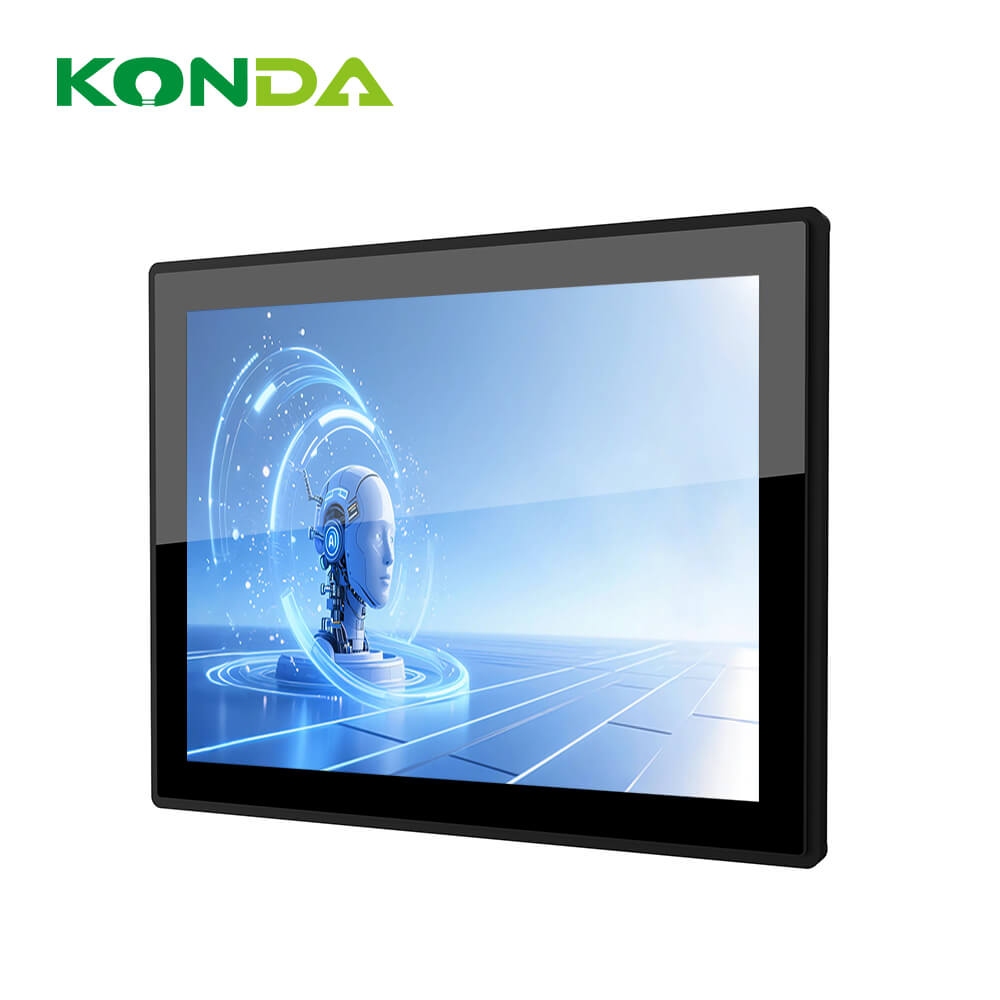

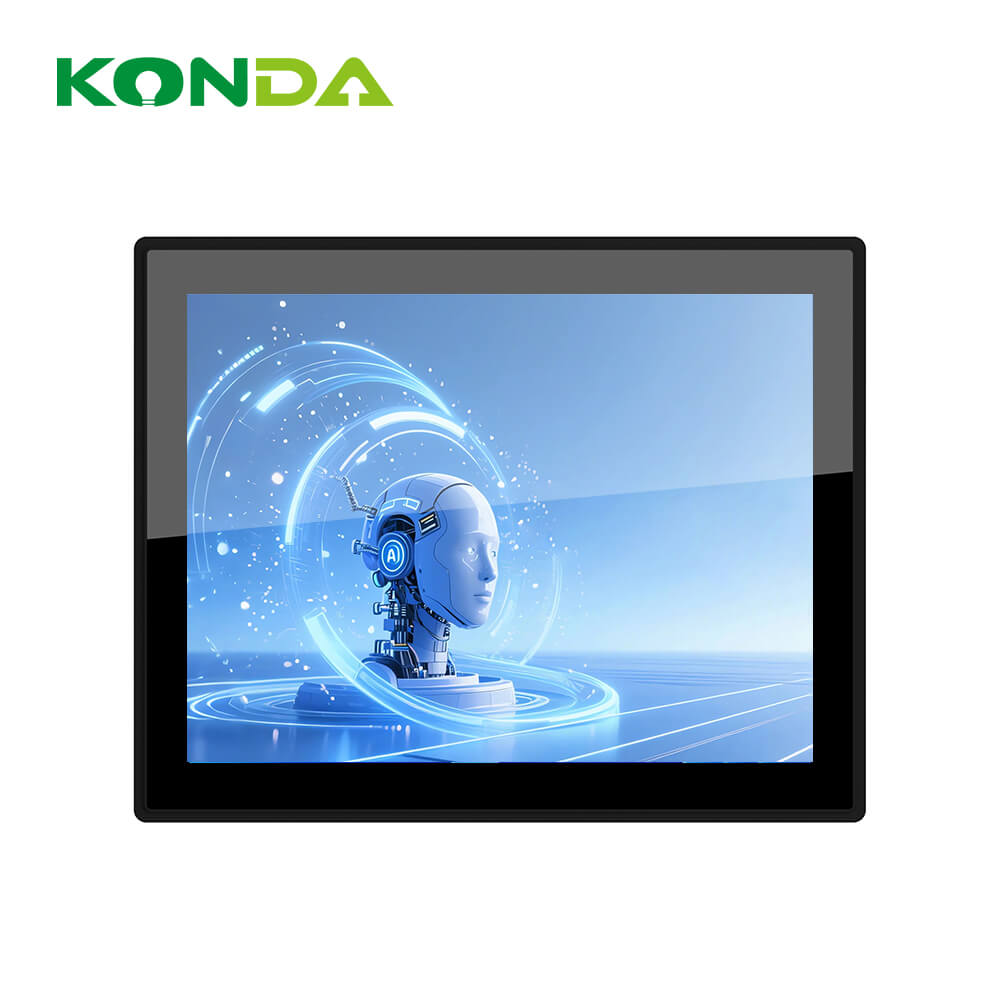

AIC-N Series

Rich I/O Interface and Android Supported

Size Range: 10.1 – 27 inches are Selectable

Features:

  • Supports Intel Celeron J6412/N97/N100/N5095 etc., Core 4-13th I3/I5/I7 low power embedded processor.
  • Supports RK3566, RK3288, RK3568, RK3399, RK3588 etc. processor.
  • Supports dual display, 1*HDMI and 1*VGA.
  • Supports watchdog function.
  • Supports DC 12V power input.
Get A Quote

Order Information

Appearance Material Aluminum alloy and iron witi the Fans
Color Black

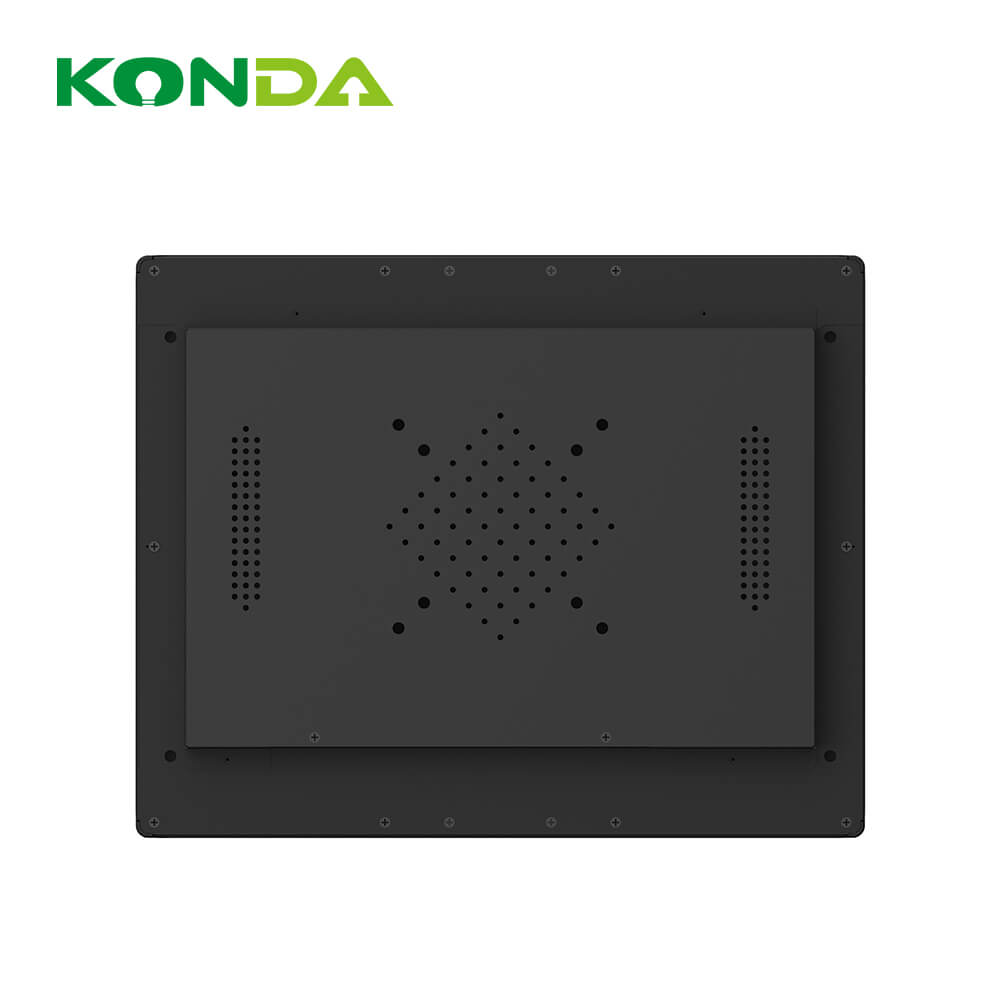

Mounting Mbedded installation/Panel Mount and VESA-Mount（100 * 100mm）
Display LCD Size 12.1’ 15” 17” 19” 13.3” 15.6” 18.5” 21.5” 23.6’
Ratio
1024*768 1280*1024 1920*1080
Brightness 250cd/m2 (800:1)
Touch 10-point capacitive touch screen
Motherboard CPU  Support Intel celeron J1900/J6412/N100/Core I3/I5/I7
GPU Intel® HD Graphics
Memory 4G/8G/16G/32G
SSD 128G/256G/512G/1TB

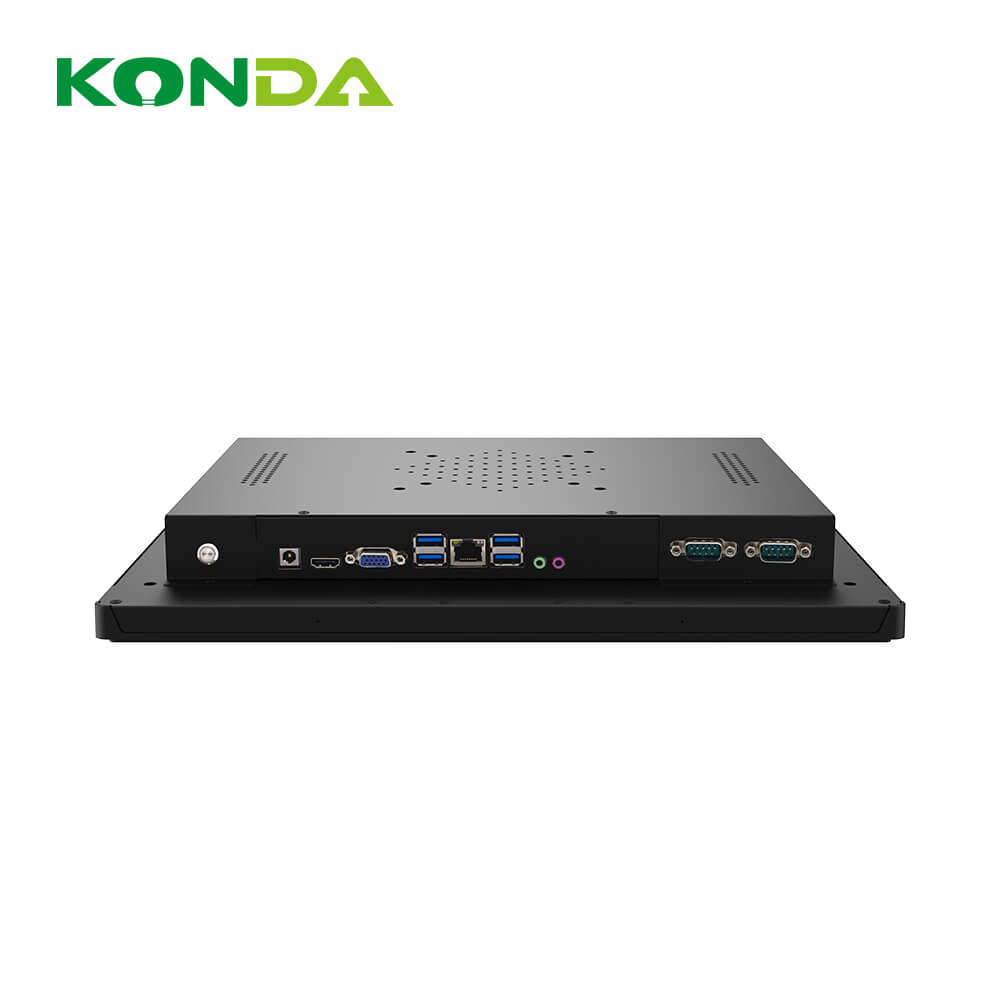

External I/O Power 1*Power Button
Display 1*VGA，1*HDMI
LAN 1/2*  GbE (10/100/1000 Mbps)
USB 2* USB2.0，2*USB3.0
COM 2* RS232 DB9
Audio 1* Line out，1* MIC
Power 1* DC 12V
Expansion Slot Mini PCIE 1* Mini-PCIE
Sofftware System Liunx/Win10/11
Watch Dog System Reset, Programmable 255 levels timer interval, From 1~255 sec/min
Power Power Input DC 12V
Consumption 20-60W
Environmental Operation Temp -10℃～60℃
Storage Temp -20℃～70℃
Relative Humidity 5%-95%RH, Non-Condensing
Shock 0.5g rms/5-500HZ/random/operating

Installation

Function options

WIFI

Bluetooth

GPS

Camera

NFC

4G

Barcode

QR code

Order Information

LCD Dimension（mm） Suggesting Cut Size（mm） Ratio Resolution VESA(mm)
10.1” 263.5*175.2*48.5 258.2*170.2 16:10 1280*800 100*100
12.1” 282.79*223.59*48.8 276*215 4:03 1024*768
13.3” 336.5*208.11*47.9 325.7*197.8 16:09 1920*1080
15” 358.4*286.7*49.1 348*276.2 4:03 1024*768
15.6” 393*241.9*49 386.3*236 16:09 1920*1080
17” 384*315.3*49.6 379.6*311.4 4:03 1280*1024
18.5” 455*280.5*49.6 449.7*274.4 16:09 1920*1080
19” 429.5*357*49.6 423.2*348.2 4:03 1280*1024
21.5” 533*319.9*49.6 527.1*314.2 16:09 1920*1080
23.6” 571.7*345.4*51.3 565.5*339 16:09 1920*1080
27” 656.7*398.1*51.3 650*391.7 16:09 1920*1080
