Products

Tailored Solutions for Every Industrial Need

Click to enlarge

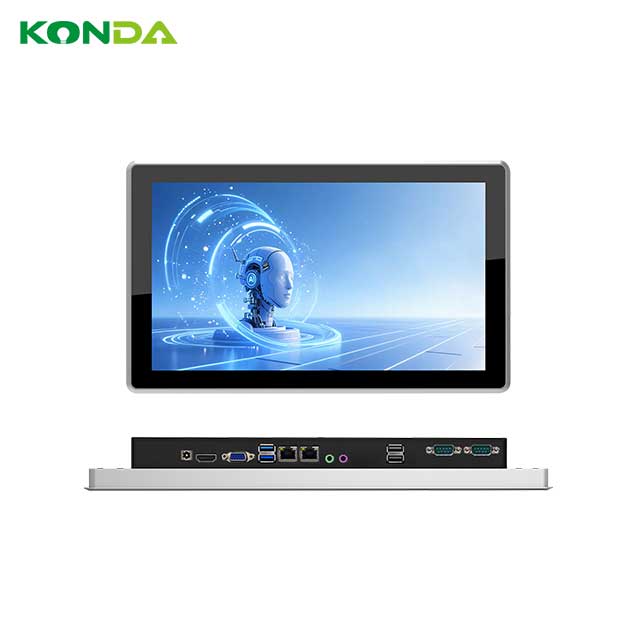

D Series (复制)

Cost-effective Model
Size Range: 10.1 – 21.5 inches are Selectable

Features:

  • Aluminum alloy and fanless design, support embedded, mount and VESA installation.
  • Supports Intel Celeron J6412/N97/N100/N5095 etc., Core 4-13th I3/I5/I7 low power embedded processor.
  • Front panel with IP65 protection, for dustproof and waterproof performance.
  • 2×RS232 (6 serial or RS485 optional), 1×HDMI, 1×VGA.
  • Operation temperature range from -10℃ to 60℃, stable for 24/7 industrial operation.
  • Supports DC 12V power input.
Get A Quote

Order Information

Appearance Material All-aluminum body, fully enclosed fanless design
Color Silver
Mounting Embedded installation/Panel Mount and VESA-Mount（100 * 100mm）

Installation

Function options

WIFI

Bluetooth

GPS

Camera

NFC

4G

Barcode

QR code

Order Information

LCD Dimension（mm） Suggesting Cut Size（mm） Ratio Resolution
10.1″ 264.46*183.1*57 398.3*242.3*58.5 16:10 1280*800
10.4″ 283*225.2*64 267.3*216.3 4:3 1024*768
12.1″ 297.4*235.75*58.5 291.4*229.75 4:3 1024*768
15″ 355.3*279.3*58.5 347.3*273.3 4:3 1024*768
15.6″ 398.3*242.3*58.5 390.4*236.2 16:9 1920*1080
