AIC-D Series

Cost-effective Model

Size Range: 10.1 – 21.5 inches are Selectable

Features:

Aluminum alloy and fanless design, support embedded, mount and VESA installation.
Supports Intel Celeron J6412/N97/N100/N5095 etc., Core 4-13th I3/I5/I7 low power embedded processor.
Front panel with IP65 protection, for dustproof and waterproof performance.
2×RS232 (6 serial or RS485 optional), 1×HDMI, 1×VGA.
Operation temperature range from -10℃ to 60℃, stable for 24/7 industrial operation.
Supports DC 12V power input.

Appearance	Material	Aluminum alloy and iron witi the Fans
	Color	Silver and Black
	Mounting	Panel Mount and VESA-Mount（100 * 100mm）
Display	LCD Size	10.4”	12.1”	15”	17”	19”	15.6”
	Ratio	1024*768			1280*1024		1920*1080
	Brightness	250cd/m2 (800:1)
	Touch	10-point capacitive touch screen
Motherboard	Processor	Supports Intel Celeron J1900/J6412/N100/core 3-13th I3/I5/I7 low power integraded processor
	GPU	Intel® HD Graphics
	Memory	4G/8G/16G/32G
	SSD	128G/256G/512G/1TB/2TB

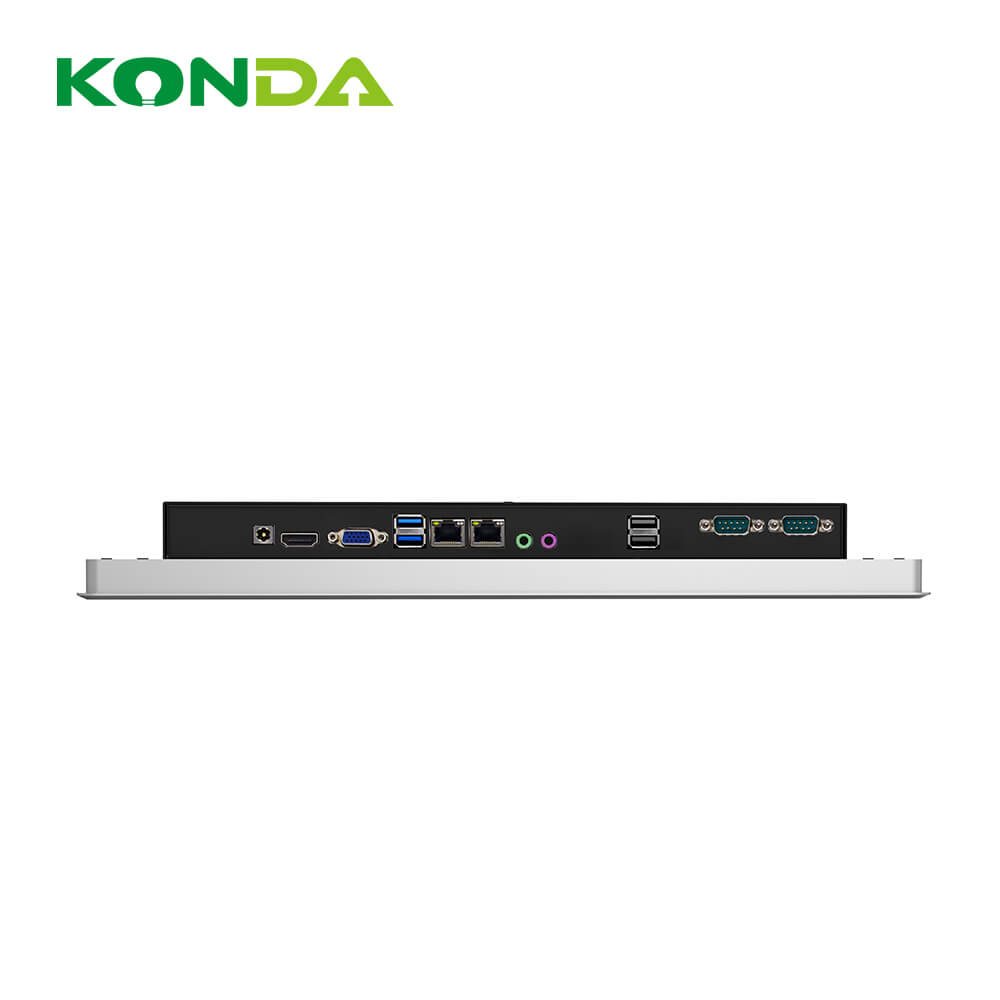

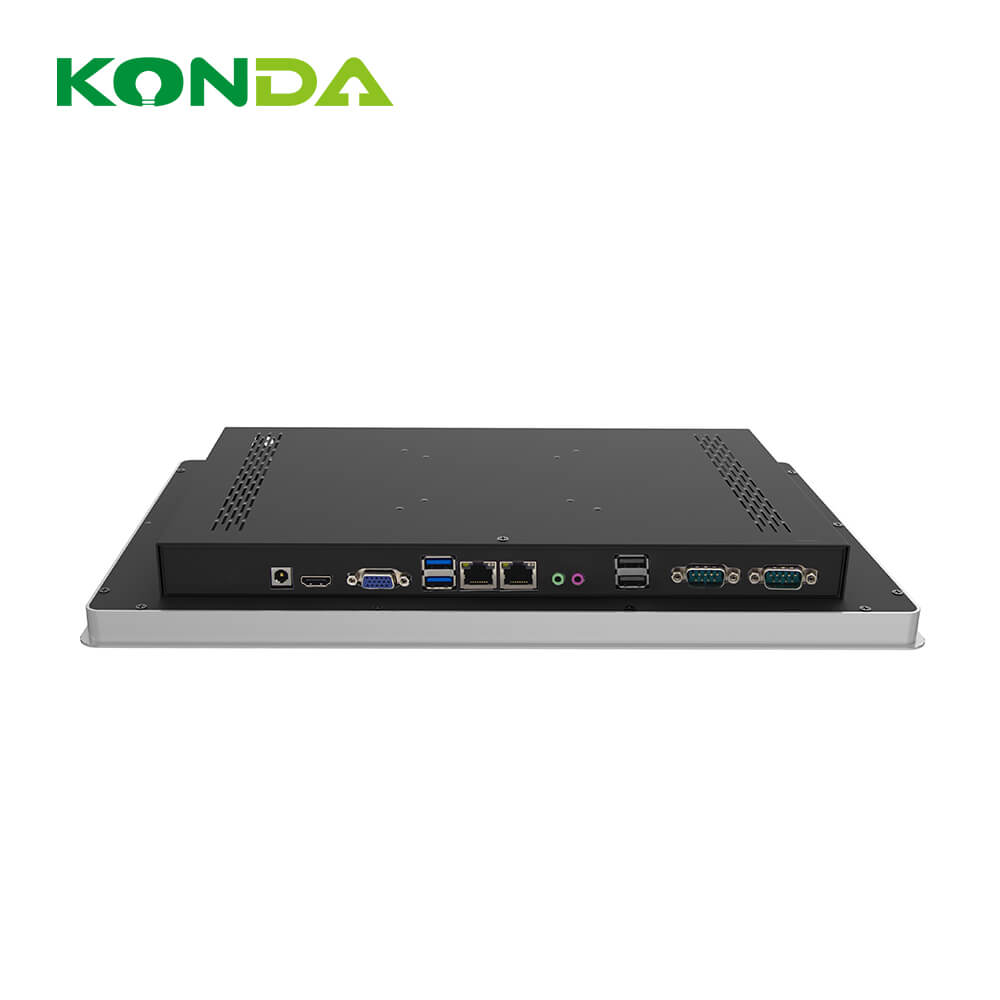

External I/O	POWER	1*Power Button
	Display	1VGA，1HDMI
	LAN	1/2* GbE (10/100/1000 Mbps)
	USB	2* USB2.0，2*USB3.0
	COM	2* RS232(1RS232+1RS485) DB9
	Audio	1* Line out，1* MIC
	Power Input	1* DC 12V(Supports wide voltage input from 9-36V)
Expansion slot	Mini PCIE	1* Mini-PCIE
Software	OS	Liunx/Win10/11
	Watch Dog	System Reset, Programmable 255 levels timer interval, From 1~255 sec/min
Power	Power Input	DC 12V
	Consumption	20-60W
Environmental	Operation Temp	-10℃～60℃
	Storage Temp	-20℃～70℃
	Relative Humidity	5%-95%RH, Non-Condensing
	Shock	0.5g rms/5-500HZ/random/operating

WIFI

Bluetooth

GPS

Camera

NFC

4G

Barcode

QR code
