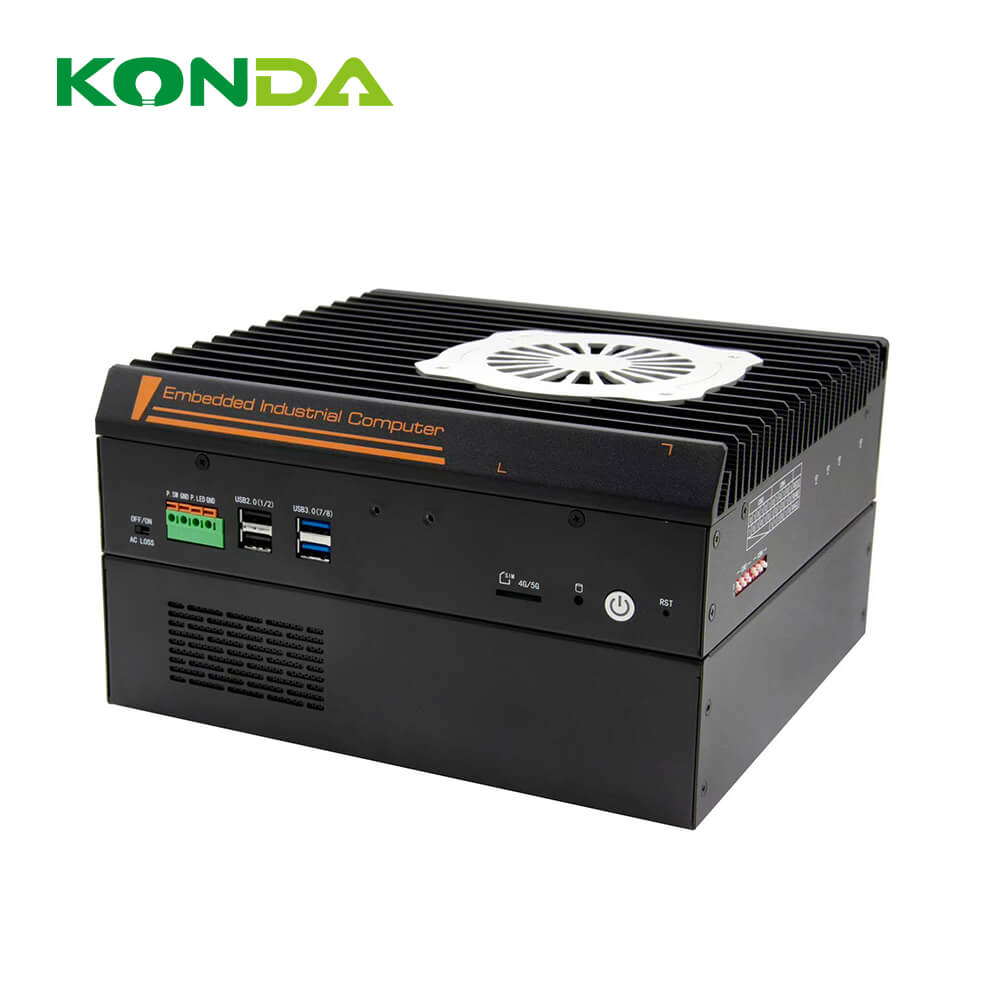

FCIC-L6E2

Features:

  • Compatibility with Intel 6th to 9th Gen LGA1151 and Intel 12th to 14th Gen LGA1700 processors.
  • Up to 64GB DDR4/DDR5 high-capacity memory expansion.
  • Dual HDMI & VGA display for multi-screen application.
  • Dual Intel I210AT Gigabit Ethernet for stable network transmission
  • 6 x DB9 serial ports, supports RS232/RS485/RS422/CANBUS.
  • Isolated 8 IN/8 OUT DIO meets industrial signal control demands.
  • 9~36V DC wide voltage input via 4P Phoenix terminal.
  • Copper tube heat conduction + fan cooling.
Get A Quote

Order Information

Model G2
Chassis Material/structure Aluminium alloy + sheet metal material Fan cooling
Colour Black+Silver
Size (LWH) 229*208*125.7MM
Weight (bare net) 3.8KG
Installation Desktop/Embedded/DIN rail(35mm)
Motherboard CPU Intel®LGA11151 /8~9 Generation Processor Series
System Chip Intel®Z390
Memory 2*SODDR4, supports up to 64GB

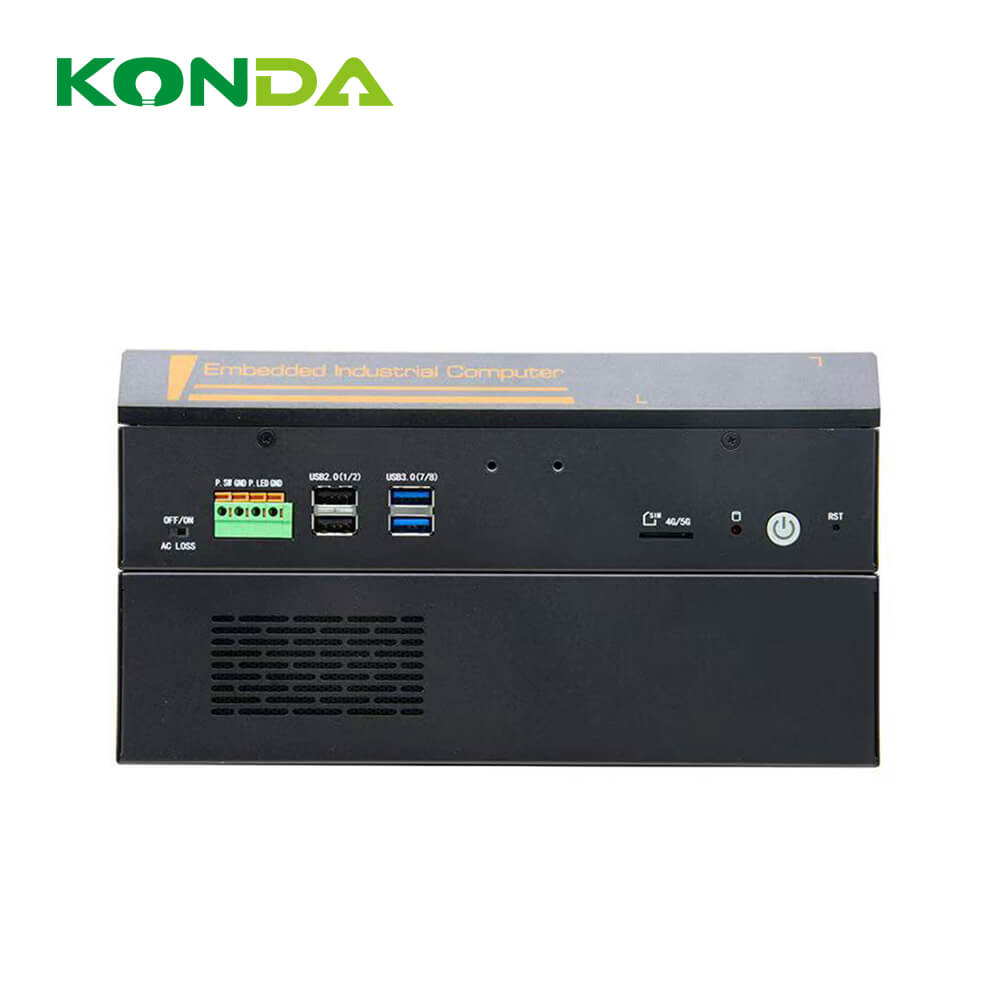

Front Panel Connectors Switch 1*Boot Button with Indicator Light, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch)
LED 1*Hard Drive Indicator
USB 2*USB3.0, 2*USB2.0, built-in 1*USB2.0
Phoenix Terminal 1*4P(1*power indicator signal, 1*power switch signal)
SIM 1*SIM standard card slot
Rear Panel Interface Display Interface 1*VGA(1920*1200@60Hz), 1*HDMI1.4
Switch 1*On button, 1*One Key Restore
COM 4*RS232 DB9 serial port, COM3 support RS232/485, COM4 support RS232/422/485
LAN 6*Intel I210AT Gigabit ports, 4 of which support POE
USB 6*USB3.0
AUDIO 1*Audio, Line out and MIC 2 in 1
DIP Switches 2 sets of 6-digit dip switches, RS232/422/485 switching through the dip switches + jump caps + BIOS settings
Power Connector 1*4P P=5.08mm Phoenix terminal, support DC 9~36V wide voltage input
Storage SATA 1*2.5-inch hard drive bay (IO board side)
MSATA 1*MSATA (IO board side)
SSD 1*M.2, support Key-M, 2280, NVME PCIEx4 SSD (motherboard side)
Expansion PCIE 1*PCIE3.0 x16 (x8 signals)
1*PCIE3.0 x8 (x8 signal) (this signal is based on motherboard, please refer to ordering information)
Wi-Fi 1*M.2, support Key-E, 2230, Wi-Fi module
5G 1*M.2, Key-B support, 3042/3052, 5G module
System Support Microsoft Windows 10
Linux Linux
Power Supply  input Type Power Type External Power Adapter
Voltage Input DC 9-36V wide voltage, max load 220W
Power Output AC TO DC 120W or more (depending on specific equipment)
Environment Operating Temperature -10℃～50℃
Storage Temperature -20℃～70℃

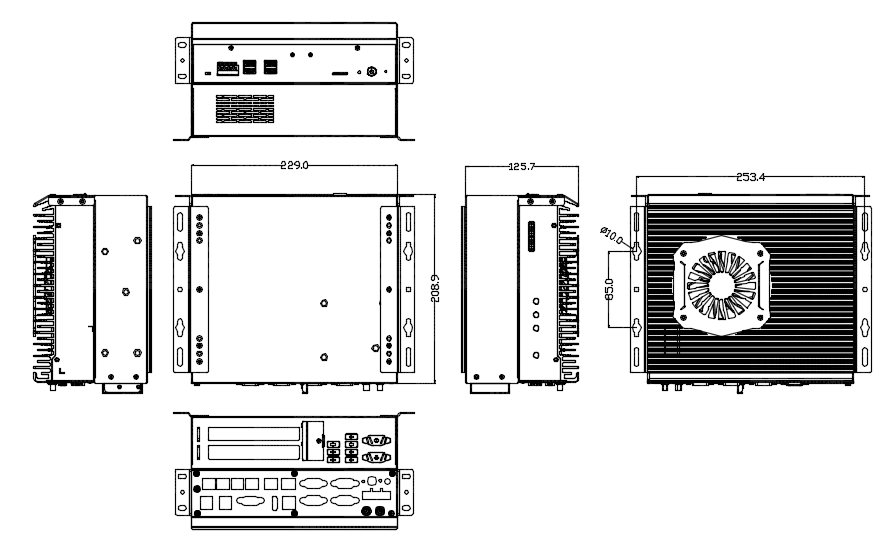

Size

Installation

Function options

WIFI

Bluetooth

GPS

Camera

NFC

4G

Barcode

QR code

Order Information

No. Model CPU Memory Motherboard Chipset IO Board HDD PCIE LAN COM USB3.0 USB2.0 Power
1 G3780F-L6E2 V2.0(G250) LGA1151

6~7th

 2*SODDR4 G250 Q250 G370-L6/G370-PW/G370-E2 2.5+msata+M.2(NVME) x8+x1 6*I210 4 8 3 9-36V
2 G3780F-L6E2 V2.0(G390) LGA1151

8~9th

 2*SODDR4 G390 Z390 G370-L6/G370-PW/G370-E2 2.5+msata+M.2(NVME) x8+x8 6*I210 4 8 3 9-36V
3 G3780F-L6E2 V2.0(G670) LGA1700

12~14th

 2*SODDR4 G670 H770 G370-L6/G370-PW/G370-E2 2.5+msata+M.2(NVME) x8+x8 6*I210 4 8 3 9-36V
