FIC-A6

Features:

Support wide Intel CPU compatibility (Core, Celeron series etc.), with hardware watchdog.
Fanless aluminum alloy chassis, dustproof, shockproof and quiet.
Rich I/O ports including dual Gigabit LAN and 6 COM ports.
Multiple storage slots, expandable for 5G and Wi-Fi modules.
Industrial-grade wide temperature and vibration resistance.

Order Information

Model	FIC-A6
Chassis	Material/structure	Aluminium Alloy Fanless Design
	Color	Black
	Size (LWH)	230mm180mm45mm
	Weight (bare net)	3.0kg
	Installation	Desktop/Embedded/VESA Hanger
Motherboard	CPU	Intel 3rd-11th generation Core i3/i5/i7 processor
	Display	1* VGA,1*HD OUTPUT
	RAM	1* DDR4 SODIMM, Max up to 32GB

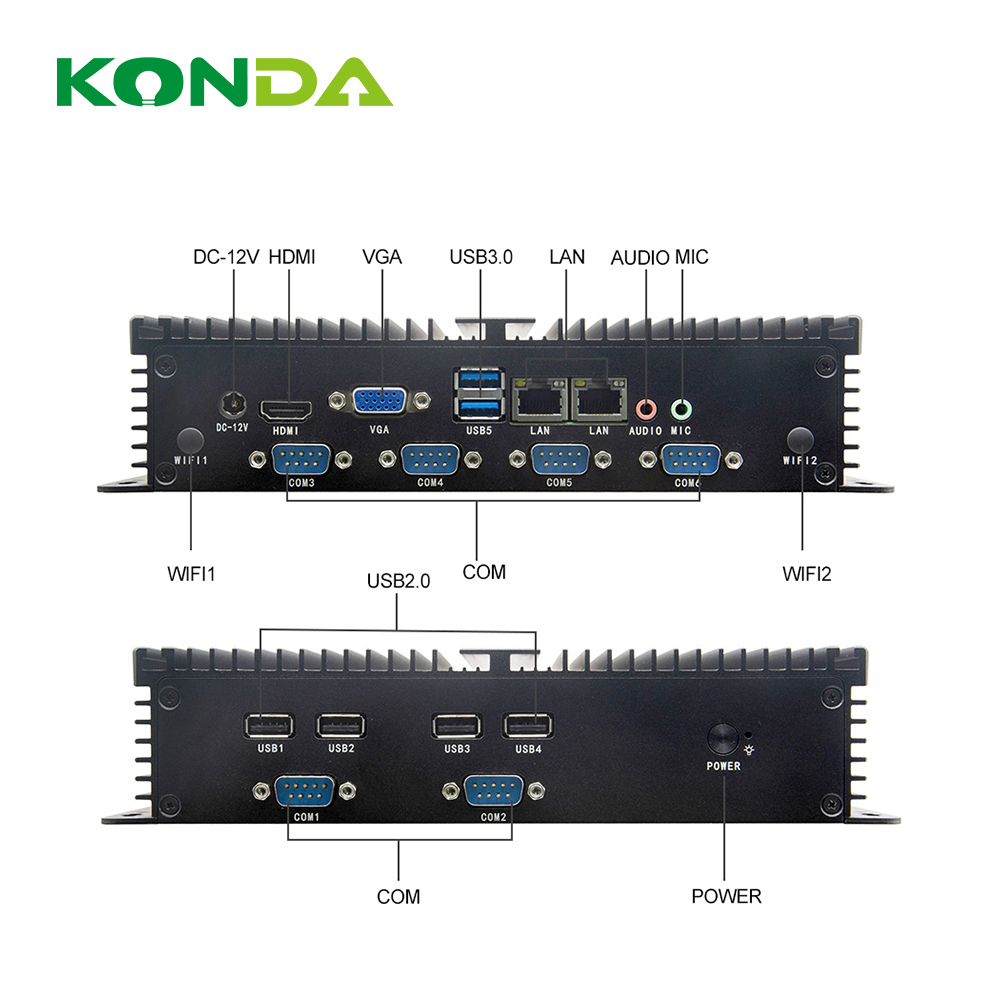

Front Panel Interface	POWER	1*Power Switch
	USB	4* USB2.0 interface
	COM	2*RS232/485/422 DB9 serial port, COM1/2 support 9pin live function
Rear Panel Interface	Display Interface	1 x VGA display port,1* HD OUTPUT display interface
	LAN	2* RJ45 Gigabit network interface
	USB	2* USB3.0 interface
	COM	4* RS232 serial interface, COM2/COM3 support RS485/422 function
	AUDIO	1* Line-out (green), 1*MIC (red) ，Realtek ALC662 ,6CH High Fidelity Audio
	Power supply	1* DC 12V power input port
Storage	SATA	1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
	MSATA	1* MSATA slot, support SSD, SSD transfer speed up to 6Gbps
	M.2	1 x M.2 slot, supporting the M.2 Key M 2260/2280 PCIE X2 SSD
Expansion	M.2	1 x M.2 slot, supporting the M.2 Key B 2242/2252 5G module
Expansion	M.2	1* M.2 slot, supporting the M.2 Key E 2230 WIFI module
System Support	Microsoft Windows	Windows 10/Windows 7
	Linux	Linux
	Watchdog	Support Hardware Reset (256levels,0~255s)
Power Requirements	Power supply type	External Power Adapter
	Voltage Input	DC 12V
	Power Output	AC TO DC, 60W and above (depending on specific equipment)
Environments	Operating Temperature	-10℃ to 60℃
	Storage Temperature	-20℃ to 70℃
	Relative Humidity	5%-90% relative humidity, no condensation
	Operating Vibration	0.5g rms/5-500HZ/random/operating
