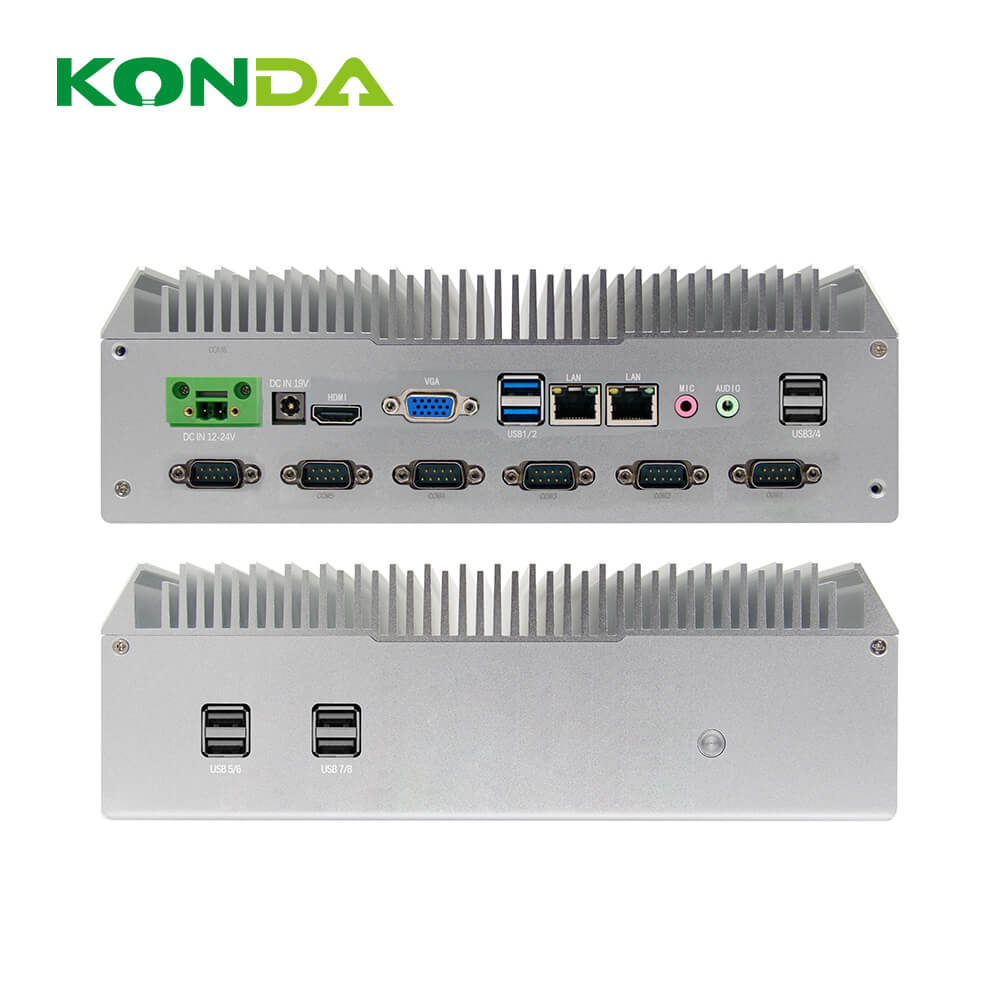

FIC-DC6

Features:

  • Rugged aluminum alloy fanless design, supports Intel® LGA 1151/1700/6th-13th Gen Core™ i3/i5/i7 Desktop Processors.
  • 6×DB9 RS232 serial ports; COM3–COM6 support RS232/RS485 switching with isolation.
  • Triple independent displays: 2×HDMI + VGA.
  • Supports 9–36V wide voltage input.
  • 1×12-pin Phoenix terminal, 4-IN/4-OUT GPIO.
Get A Quote

Order Information

Appearance Material/Mechanism Fanless all-aluminum alloy construction
Color Silver
Dimensions (L×W×H) L282*W192*H80mm
Mounting Desktop–mounted/Panel-mounted
Motherboard CPU Supports LGA1151 socket 6th/7th/8th/9th Celeron/Pentium/Core™ i3/i5/i7 processors
SoC Equipped with Intel B365 high-speed chipset
Display ntegrated Intel® high-performance core graphics
RAM 4G-32G optional

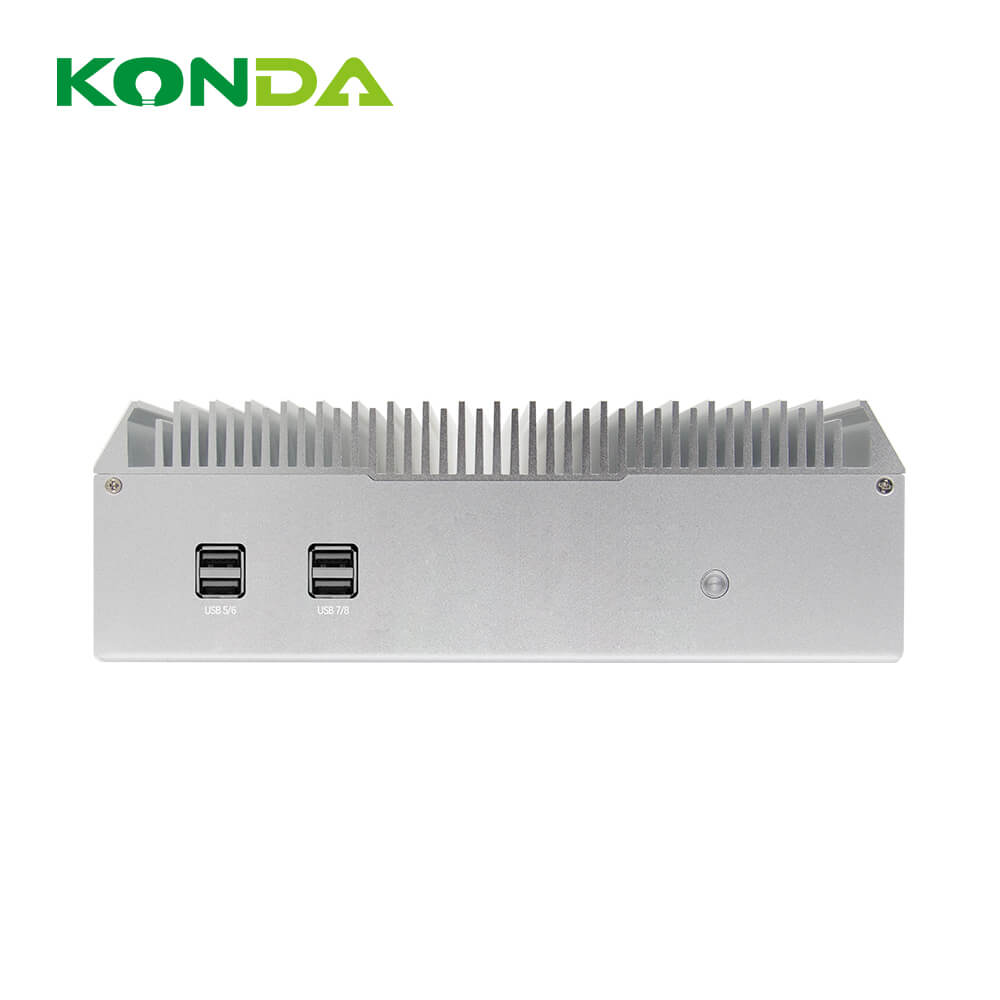

Front Panel I/O POWER 1*POWER BUTTON，1*Reset switch
AC LOSS 1*AC LOSS （Power-on toggle switch）
USB 4* USB2.0，4*USB3.0
Phoenix connector 1*12pin，support 4-in/4-out GPIO，Switch ，5V
PS2 1*PS2 I/O
COM 1* RS232 serial port,supports RS232/RS485 switching with optical isolation
LED 1* Power LED，1*HDD Activity LED
SIM 1* SIMard slot，3G/4G module application

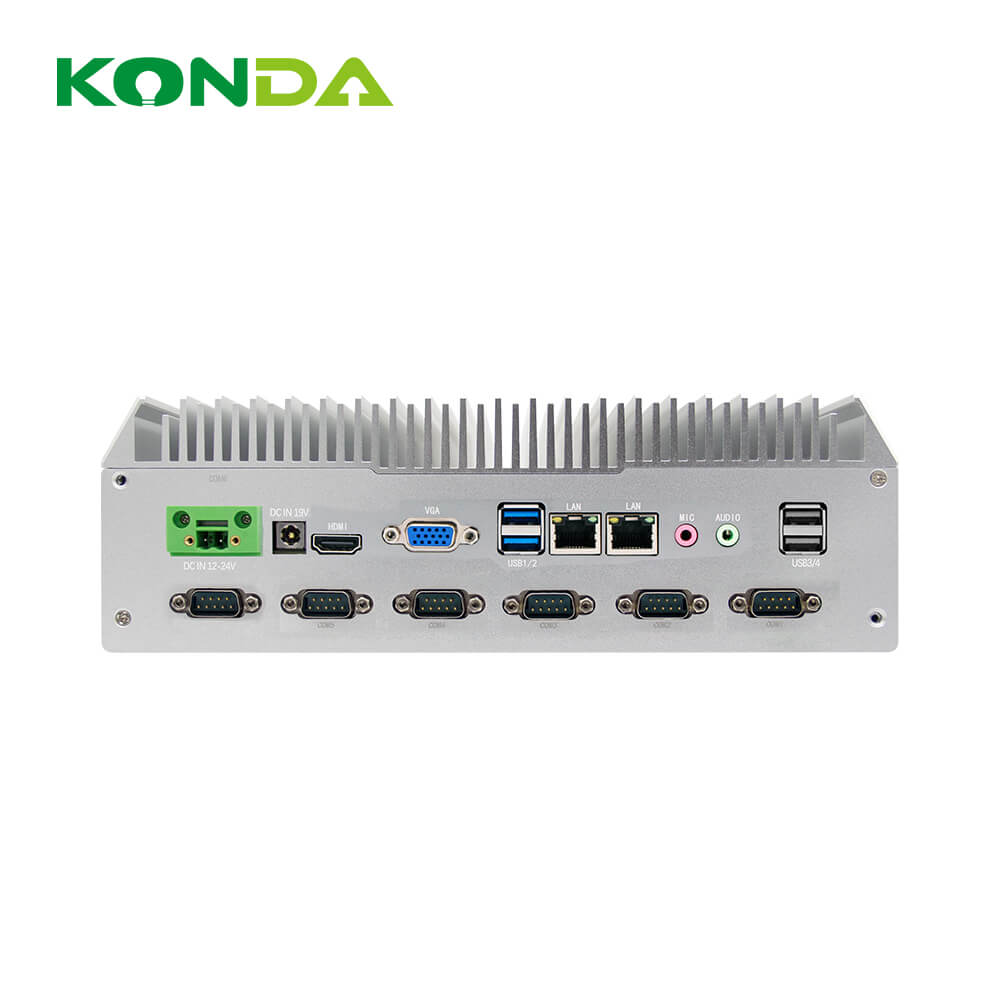

Rear Panel I/0 Display 1*VGA，2*HDMI1.4
LAN 3* Intel® WGI211AT Gigabit Ethernet NIC with Wake-on-LAN (WoL) and PXE boot support
USB 4* USB3.0
COM 5* DB9 RS232serial port,COM3~COM6 supports RS232/RS485 switching with optical isolation
Audio 1* Line out，1* MIC
Power Input 1* 4pin DC power Connector，support DC 9~36V power input
Storage MSATA SSD 64G-1TB optional
Expansion slot Mini PCIE 1* Mini-PCIE，supports WIFI，bluetooth ，4G network
Software OS Liunx/Win7/Win10(key not included)
Watch Dog Supports hardware reset function (256 levels, 0~255 seconds)
Power Power type External Power Adapter
Power Input 9V~36V DC
Power Output 36W~180W
Environmental Operation Temp -10℃～60℃
Storage Temp -20℃～70℃
Relative Humidity 5%-95%RH, Non-Condensing
Shock 0.5g rms/5-500HZ/random/operating

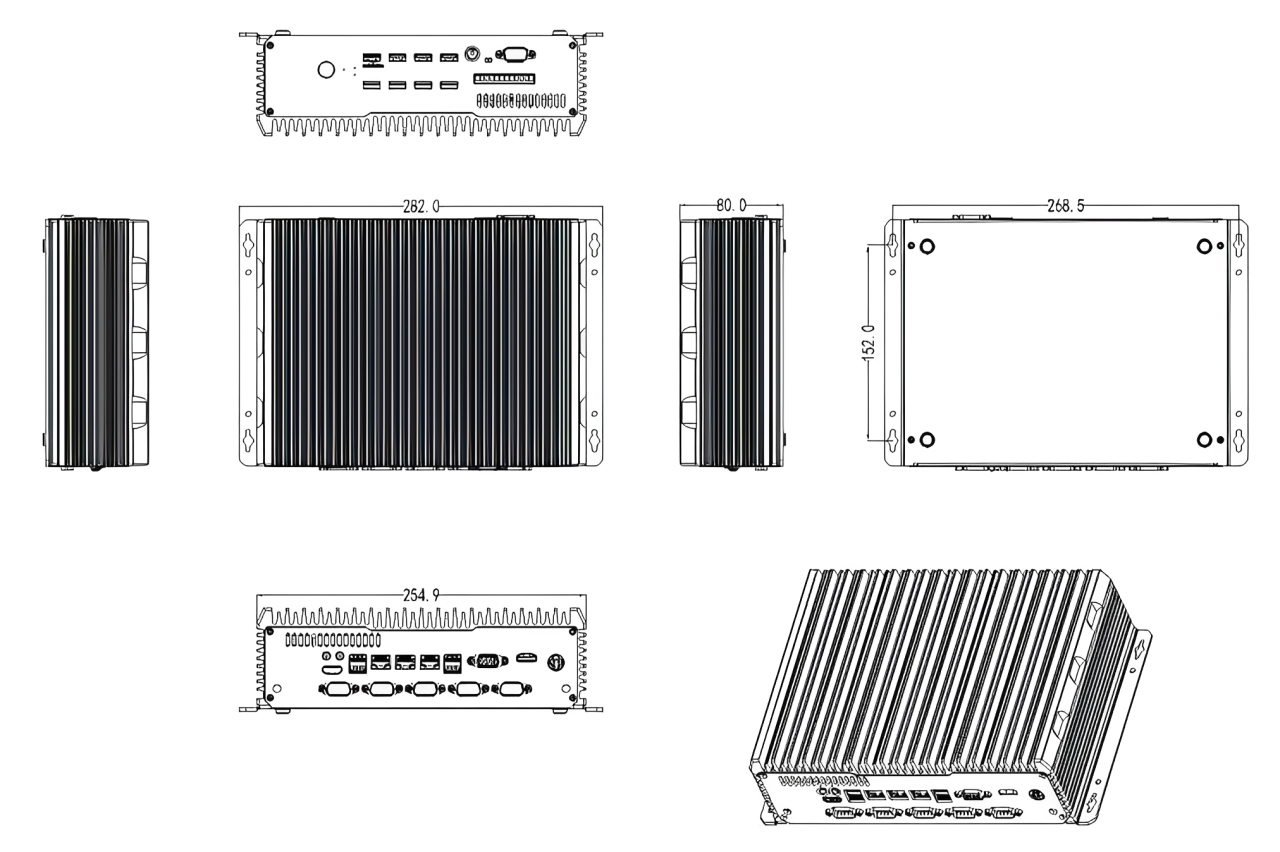

Size

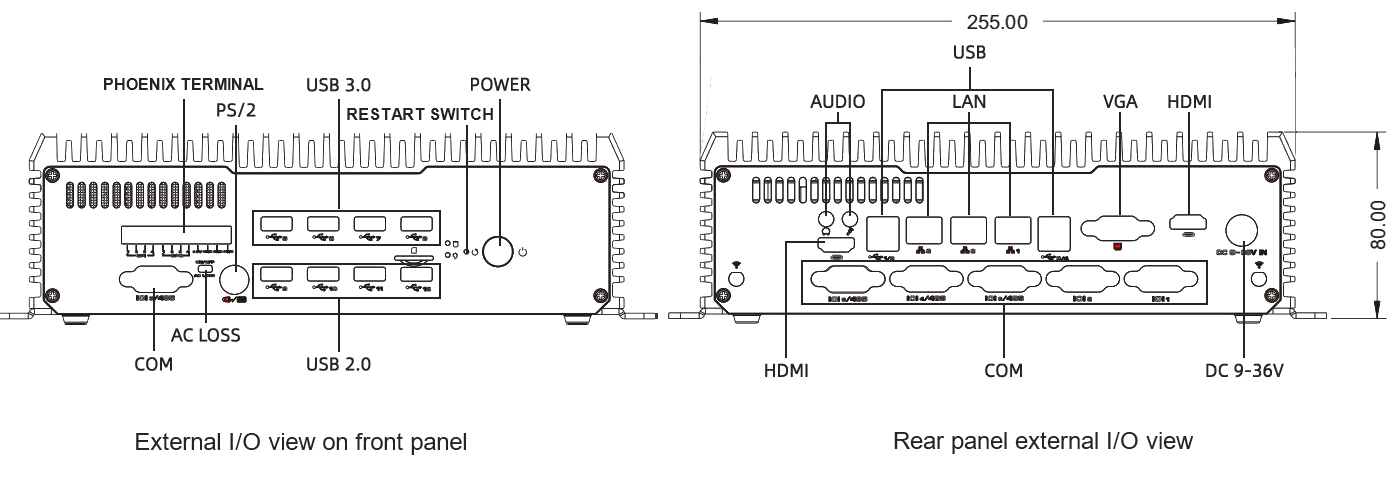

Installation

Function options

WIFI

Bluetooth

GPS

Camera

NFC

4G

Barcode

QR code

Order Information

No. Model Processor M.2 Memory Phoenix Terminal LAN COM HDMI VGA USB2.0 USB3.0 Built-in USB SIM PS2 Power-input
1 YM365-C6 V1.0 LGA1151 1 2*SODDR4 1*12PIN 3 6 2 1 4 8 / 1 1 9V~36V wide voltage range
