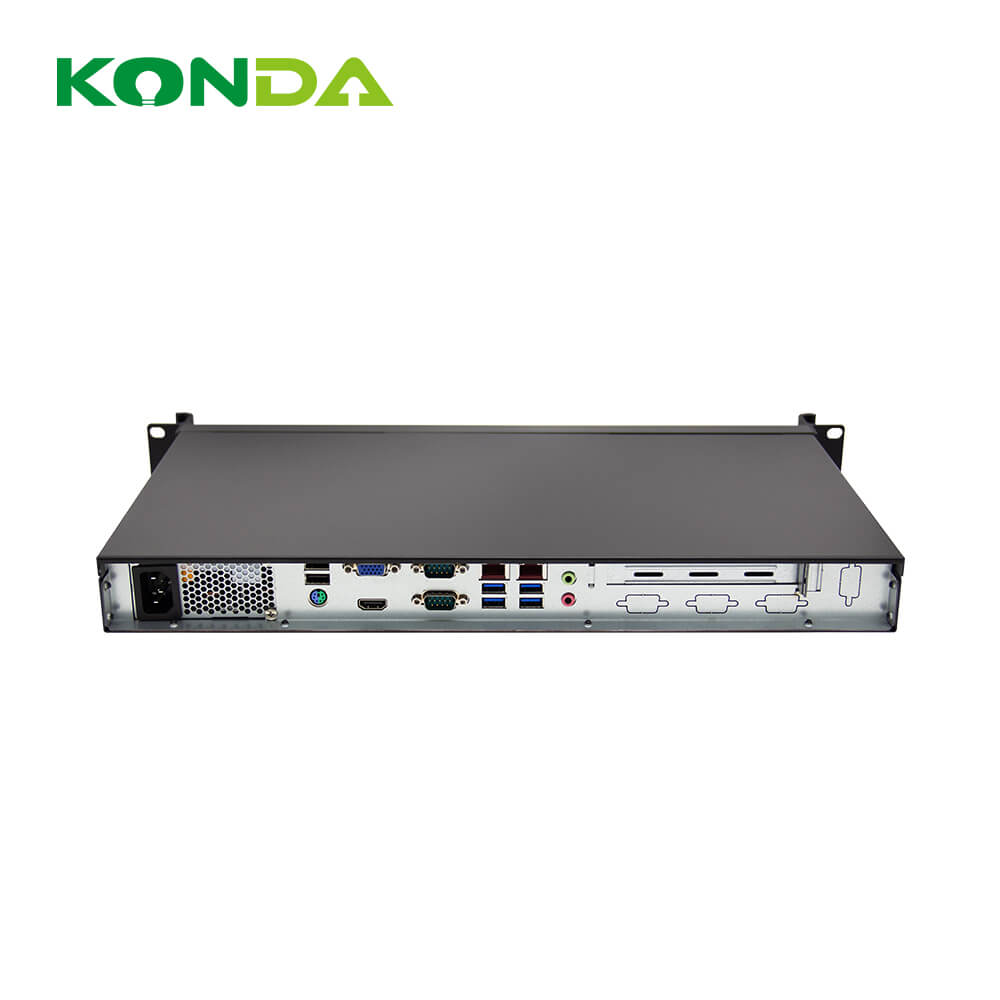

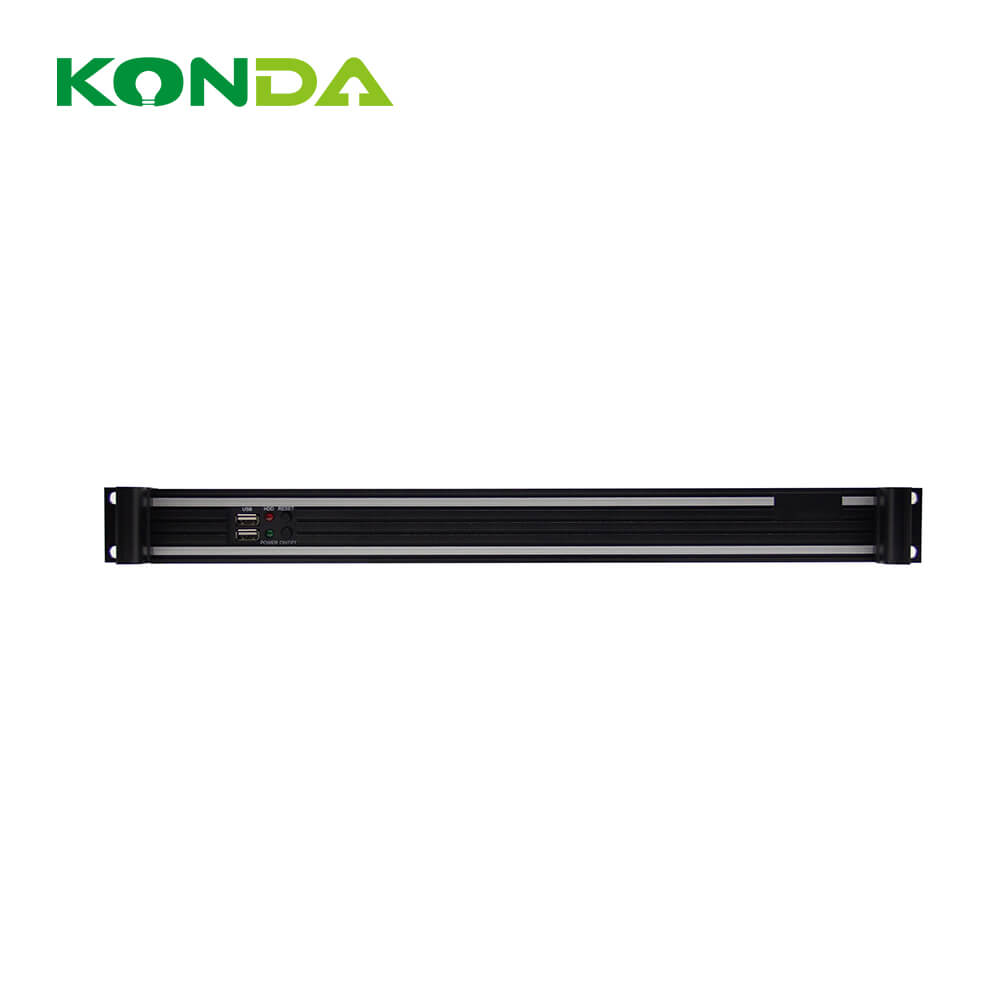

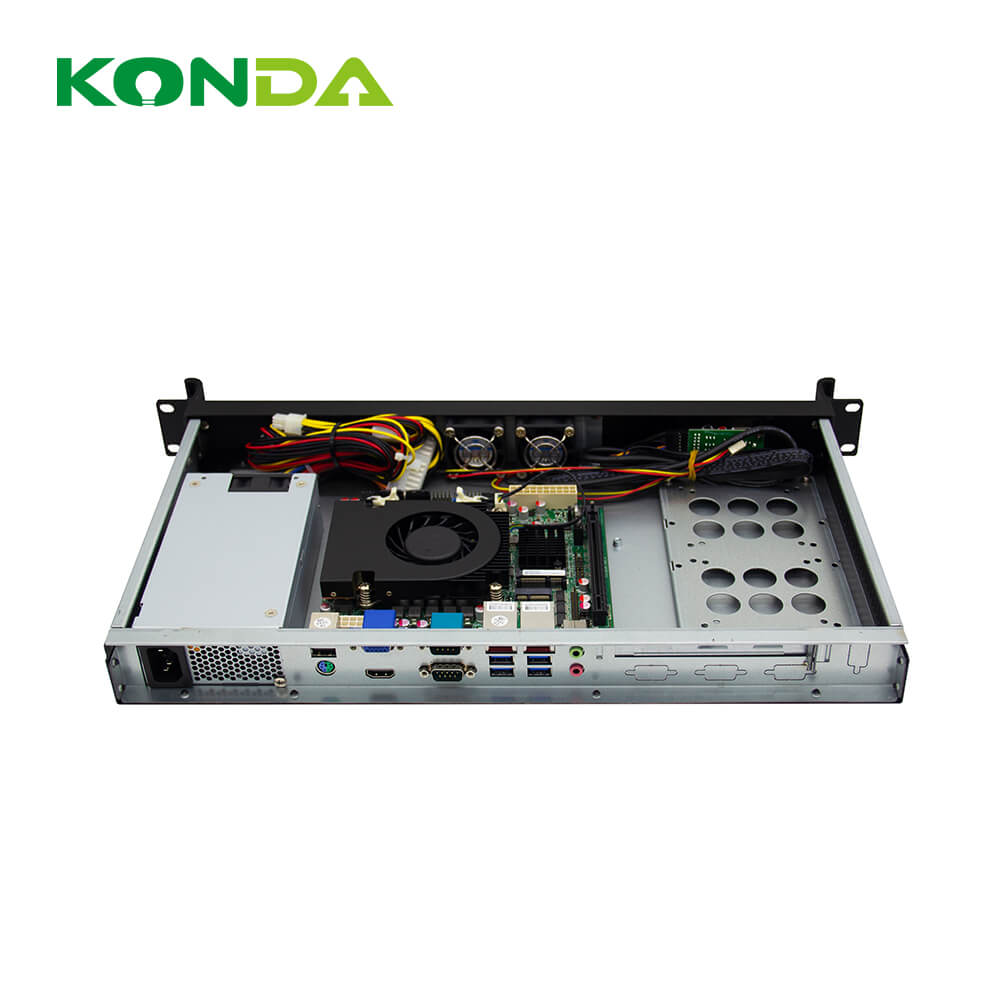

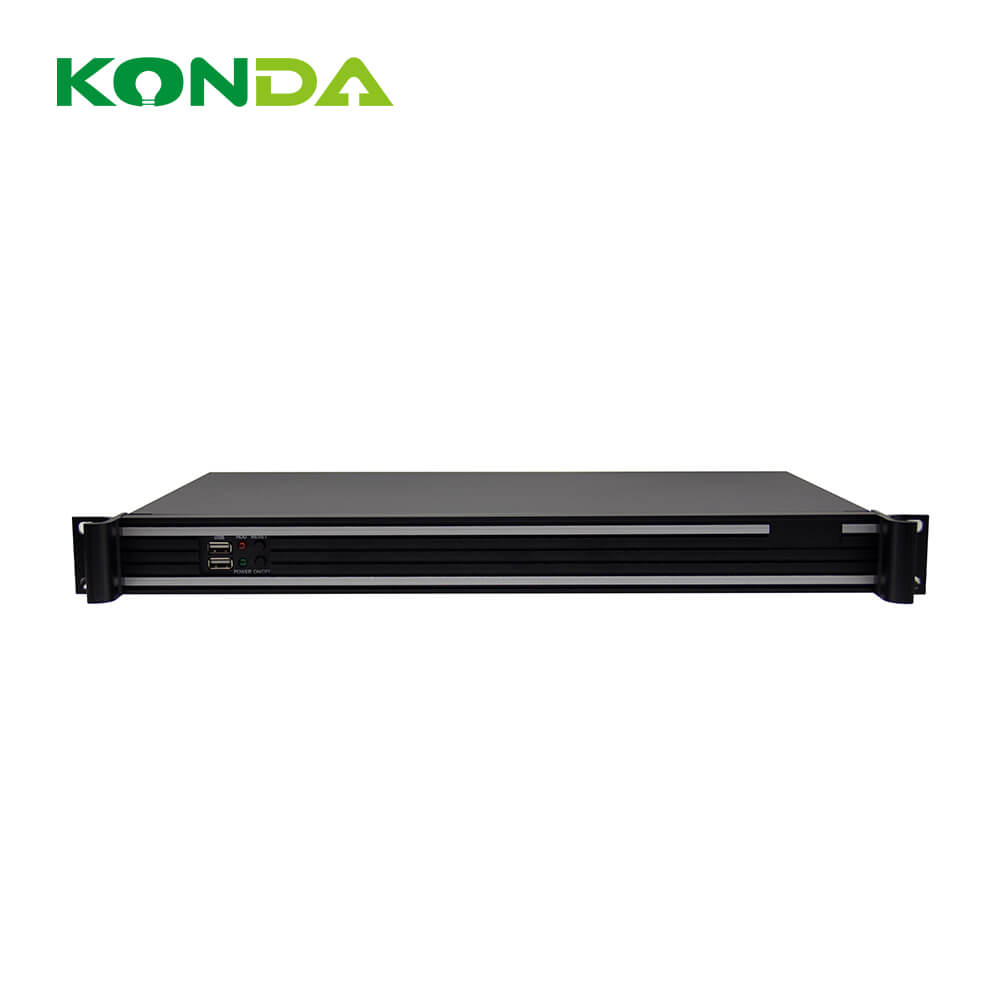

FPC-1U

Features:

Supports Intel® 2nd to 14th Gen Celeron/Pentium/Core i3/i5/i7/i9 high-performance processors.
Active cooling, zinc-plated steel chassis, and safety lock panel.
Standard rackmount industrial chassis: 1U / 2U / 4U.
Dual Gigabit LAN (standard); supports multi-NIC, serial, display, and rich PCIe expansion.
Supports chassis expansion: half-height (2U) / full height(4U+).

Order Information

CPU	CPU	Supports Intel 2th-14th Celeron/Pentium/Core™ i3/i5/i7/i9 discrete high-performance processors
	Base Clock Frequency	Base clock frequency varies by processor – refer to actual CPU specifications
	Chipset	Intel B75/Q85/Z270/H510/H610 High-Speed Chipset
	BIOS	128Mb Flash ROM
RAM	Capacity	4G/8G/16G/32G/64G/128G optional
Display	GPU	Integrated Intel® High-Performance Core Graphics (Discrete GPU optional)
	Graphics Engine	DirectX 12， OpenGL 4.5
	Display	1HDMI1.4，1VGA（I/O interface availability is chipset-dependent）
	Asynchronous Dual Display	√
Ethernet	LAN	2* Intel Gigabit Ethernet NIC with Wake-on-LAN (WoL) and PXE boot support
Audio	I/O	High-Fidelity Audio Controller,supports MIC、Line_in
I/O	Serial Interfaces	6*DB9 RS232Serial Interfaces
I/O	USB	6USB2.0，4USB3.0 (count differs across platforms）
Expansion slot	Mini PCIE	1*MINI PCIE Slots,（PCIe lane allocation is chipset-dependent）
Expansion slot	Expansion Slots	1PCIEx16,1PCIEx4，4*PCI（PCIe lane allocation is chipset-dependent）
Storage	Storage Drives	SSD 64G-2TB，HDD1T-8T optional
Software	OS	Liunx/Win7/10/11 optional (key not included)
POWER	Power Type	Standard ATX 300W Power Supply (High-wattage PSU optional)
POWER	Power Input	AC 110V-220V power input
Machine Construction	Mechanism	Active Cooling Architecture, constructed with 1.0KK SGCCGalvanized Steel
	Mounting	4U Rack-Mount Installation
	Dimensions (L×W×H)	428mm177mm450mm
Environmental	Operation Temp	-10℃～60℃
	Storage Temp	-20℃～70℃
	Relative Humidity	5%-95%RH, Non-Condensing
	Shock	0.5g rms/5-500HZ/random/operating
